Non-Insulated Patio Enclosures

Non-Insulated Patio Enclosures

The perfect way to add extra living space to your home and save energy to boot

A beautiful, custom fit Wrisco room enclosure will provide your family with a bright, cheerful, cool oasis for a full range of warm weather activities. Low cost, virtually maintenance free, illuminated directly from the sky, this unique indoor/outdoor living space is the perfect answer to today's high energy and construction costs. Your family will find it ideal for entertaining, dining, playing, or just plain relaxing !!

Wrisco Patio Enclosures feature:

Outdoor living with indoor convenience
Enhance beauty and value of property
Large unobstructed outdoor view
Pre-engineered, sturdy construction
All maintenance free components designed to resist rust and rot
Lifetime aluminum extrusion framework
Rigid vertical main frame structure
Specially designed integral corner posts
Available in white or brown
Permanent baked-on enamel finish
Charcoal fiberglass screen cloth
Sturdy aluminum kickplates
Custom fit to your patio or porch roof
Custom heights up to ten feet
Adaptable to any length and width
One or more doors designed to suit any type room
Malibu model adaptable to various window treatments (jalousie, awning, double hung, etc.)

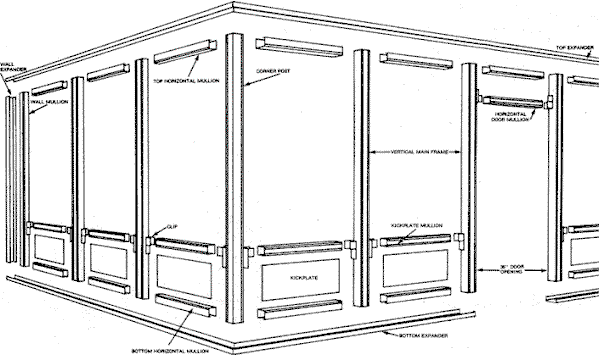

Non-Insulated Patio Enclosure Diagram

Select from three models

Model A section widths 36"
Model B section widths 36" and 48"
Model C section widths 36", 48" and 60"

Section widths will be determined by factory according to floor plan.

Description of major components

Colors: White or Brown
Standard 8' and 10' heights, custom sizes available
All extruded parts individually wrapped
2" Square extruded main frame
2" Square extruded corner frame
1" x 2" Extruded kick plate mullion
1" x 2" Extruded top and bottom mullion
1" x 2" Extruded Wall mullion
2" x ž" Extruded top, bottom and wall expander
12" - 18" - 24" Stucco embossed kick plate (Masked one side)

2" Extruded inside corner (Optional)
Charcoal fiberglass screen cloth
Square serrated polyethylene screen spline
Screen roller
Foam wall sealant tape
Mullion clips
All necessary screws
Nylon masonry anchors
Easy to install regardless of pitch of roof or slab
Detailed, easy to read assembly and installation plans and instructions

Optional Extruded door: Pre hung 36" x 78" left or right. Includes door check, lock set and hardware. Individually cartoned.

Because your family deserve the very finest !!

Wrisco Patio Enclosures are the product of over 85 years continuous dedication to excellence in the design and manufacture of superior quality metal products. Our built-in quality is assurance that your investment in a Patio Enclosure will not only make your home more beautiful, but will provide you with years of pleasurable, trouble-free enjoyment as well. For more information, please contact a Wrisco dealer in your area today.
