ENDUREX™ 500 SERIES

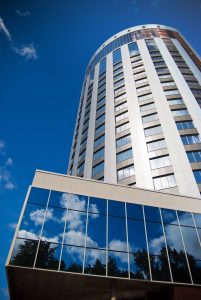

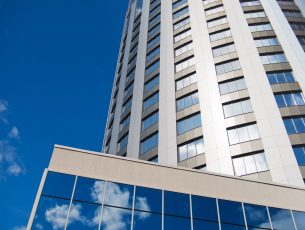

anodized aluminum used for the siding of a skyscraper

Courtesy of NUDO

Wieland-Wrisco’s Endurex™ 500 Series not only extends the life of the building, but also provides energy savings. The panel starts with an insulating foam core that is protected on either side by a variety of stabilizers. The exterior of the panel is then covered with a smooth or textured painted aluminum skin. A wide variety of aluminum finishes, foam cores and stabilizers provide design flexibility to meet your building cladding requirements.


CHOOSING THE RIGHT CORE AND FINISH

Wieland-Wrisco wants to be sure you have the right panel option for your building requirement. For that reason, we offer the widest variety of panel components available. Insulating foams with very high R-values, moisture resistant and impact resistant stabilizers, are all combined with the best Anodized, Kynar® and polyester paint finishes available. Your building envelope will look spectacular, while providing energy savings year after year. Review all the Endurex™ 500 Series offerings to find the right choice for your building requirements.

Wieland-WRISCO OFFERS THE ENDUREX™ 500 AND 505 PANELS

Endurex™ 500 and 505 are the only 1” glazing panels offering solid plastic stabilizers that will not absorb moisture and yet offer exceptional impact resistance.

Endurex™ 500

Combines all the benefits of moisture resistant ACP/ACM panels with a foam insulating core. Rather than standard hardboard stabilizers that can absorb water, or even the next generation of corrugated plastic stabilizers which have less rigidity and impact resistance, the Endurex™ 500 panel has solid plastic core stabilizers backed by an extra layer of aluminum behind each stabilizer.

Fire Rating
Class “A”

Finish Option
Polyester paint finish

Available Sizes
4´ x 8´, 4´ x 10´ (5´ x 10´ available in white smooth only)

Warranty
5-year limited warranty

Endurex™ 505

Combine all the exceptional features of the Endurex™500 (above), and add a .032” (.040”, .060” available) Kynar® or Anodized finished aluminum.

Fire Rating
Class “A”

Finish Option
Kynar® or Anodized finished aluminum

Available Sizes
4´ x 8´, 4´ x 10´ (5´ x 10´ available in white smooth only)

Warranty
5-year limited warranty

Endurex™ 510

Standard 1” insulated glazing panel with corrugated plastic stabilizers on both sides of a 2lb EPS foam core. More moisture resistant than the Endurex™ 520, but less impact resistant than the Endurex™ 500, 520 or 530.

Fire Rating
Not Tested

Finish Option
Polyester paint on either smooth or embossed aluminum

Available Sizes
4´ x 8´, 4´ x 10´ (5´ x 10´ available in white smooth only)

Warranty
5-year limited warranty

Endurex™ 515

Start with the benefits of the Endurex™ 510 (above) and add a .032” (.040”, .060” available) Kynar® or Anodized finished aluminum.

Fire Rating
Not Tested

Finish Option
Kynar® or Anodized finished aluminum

Available Sizes
4´ x 8´, 4´ x 10´, 4´ x 12´ (5´ x 8´ and 5´ x 10´ available in limited colors)

Warranty
5-year limited warranty

Endurex™ 520

The most traditional 1” insulated panel using tempered hardboard as stabilizers around 2lb EPS foam core. The Endurex™ 520 does not offer the same moisture and impact resistance found in the Endurex™ 500.

Fire Rating
Class “A”

Finish Option
Polyester paint finish

Available Sizes
4´ x 8´ and 4´ x 10´

Warranty
5-year limited warranty

Endurex™ 525

Take the Endurex™ 520 and add a .032” (.040”, .060” available) Kynar® or Anodized finished aluminum.

Fire Rating
Class “A”

Finish Option
Kynar® or Anodized finished aluminum

Available Sizes
4´ x 8´ and 4´ x 10´

Warranty
5-year limited warranty

Endurex™ 530

Cement board stabilizers and greater fire-resistance are the hallmark of the Endurex™ 530. Used when maximum fire-resistance is required such as in schools and hospitals. Endurex™ 530 can also include a 1/2” or 5/8” gypsum stabilizer instead of cement board. Fire-resistant foam such as Polyisocyanurate (Iso) is generally specified. It also provides a higher R-value.

Fire Rating
Class “A”

Finish Option
Polyester paint on either smooth or embossed aluminum

Available Sizes
4´ x 8´ and 4´ x 10´

Warranty
5-year limited warranty

Endurex™ 535

To increase the “finish life” of the Endurex™ 530 add a .032” (.040”, .060” available) Kynar® or Anodized finished aluminum.

Fire Rating
Class “A”

Finish Option
Kynar® or Anodized finished aluminum

Available Sizes
4´ x 8´ and 4´ x 10´

Warranty
5-year limited warranty
